User Interface

An attractive, user-friendly interface

The clear, practical interface gives users access to the full set of core functions directly from the home screen to ensure they are up and running with the software fast.

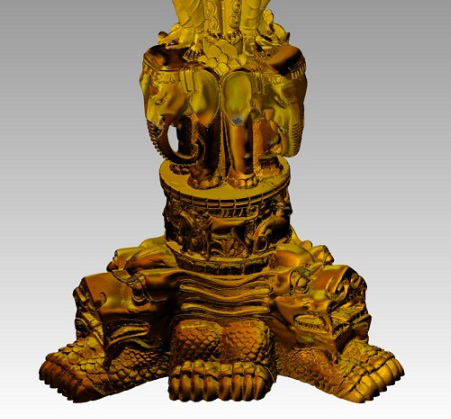

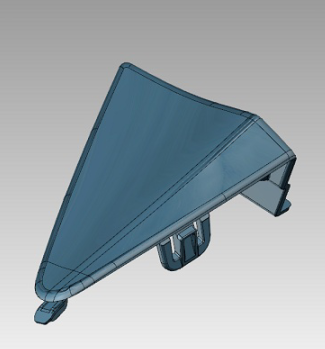

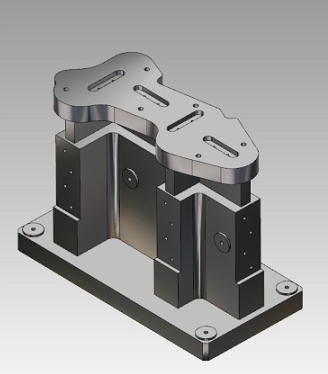

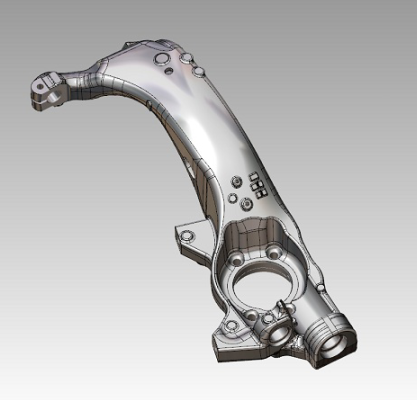

Total, high performance 3D model handling and display :  The software features predefined windows with various views (face, top, bottom, left, right, iso,...); dynamic zoom, rotation and scroll functions;  several display modes : 3D, shaded, wireframe, hidden lines or textured;  color transparency and visibility management for each object or surface in a 3D model.
Instant, easy access to key information : WorkXPlore 3D provides fast access to an integrated file explorer, part or assembly tree structures as well as layer and scene management.
Integrated Explorer:
This function allows available files to be rapidly previewed, filtered and imported with a single mouse click or by drag & drop. Users can also memorize their favorite folders in this tool.
Assembly Tree Structure:
It allows CAD files and original assemblies to be located, previewed and modified according to different WorkXplore 3D function such as sorting, selection, deletion...

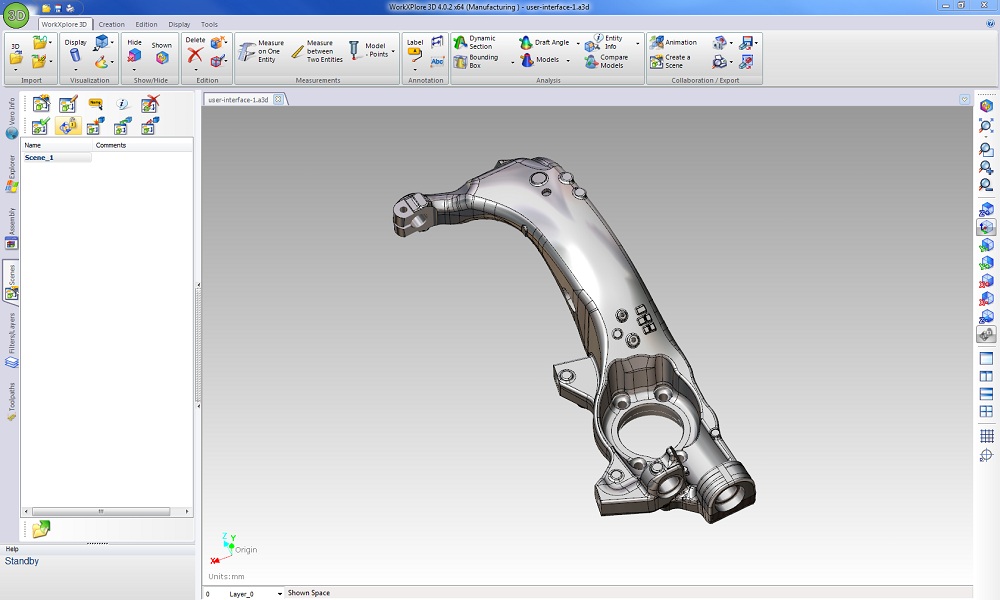

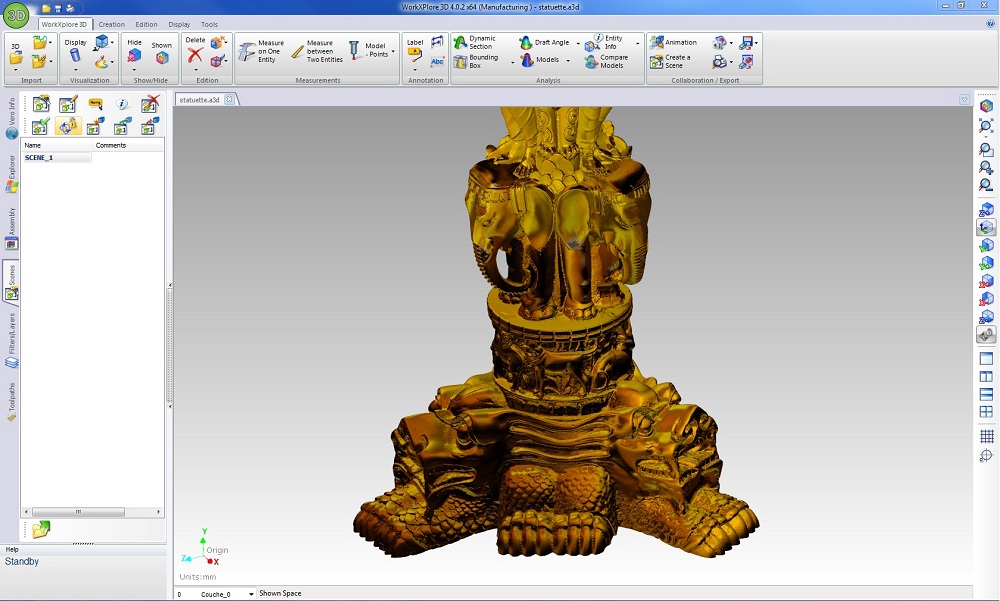

Scenes:
WorkXplore 3D can create '3D layouts of elements in the current session'. Certain elements (wireframes, measurements, annotations) can be associated to a scene. In this case, they will only be visible when the associated scene is activated. Scenes can be saved at any time and any user can consult and modify them with a simple mouse click.
Layers and Filters:
WorkXplore 3D is capable of reading all the layers and filters of any 2D/3D CAD file. Users can also modify existing layers and filters as well as create new ones in WorkXplore 3D.

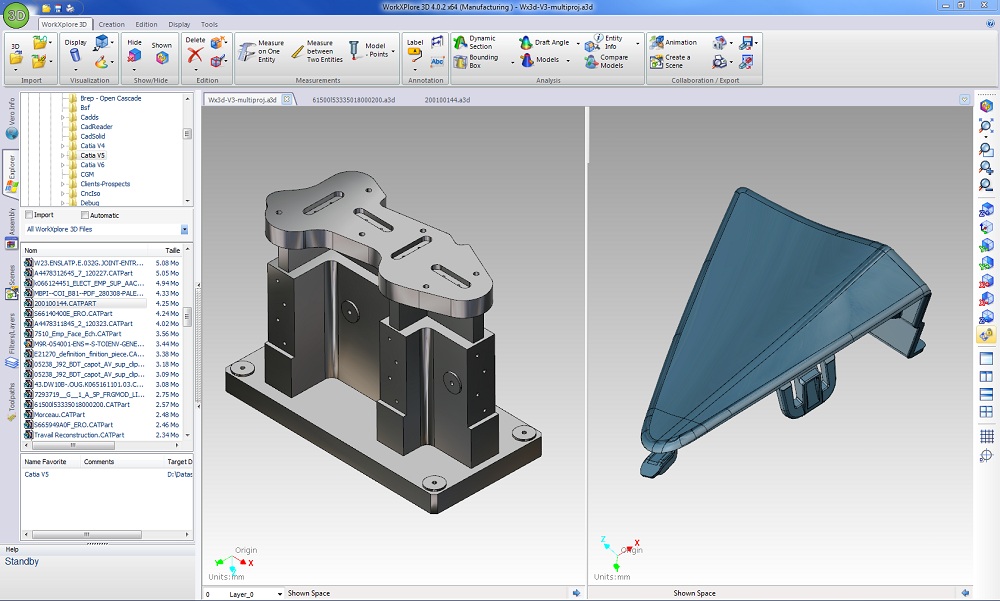

Multi-project management:
The user can work on several projects simultaneously and switch from one to another in the same environment.
